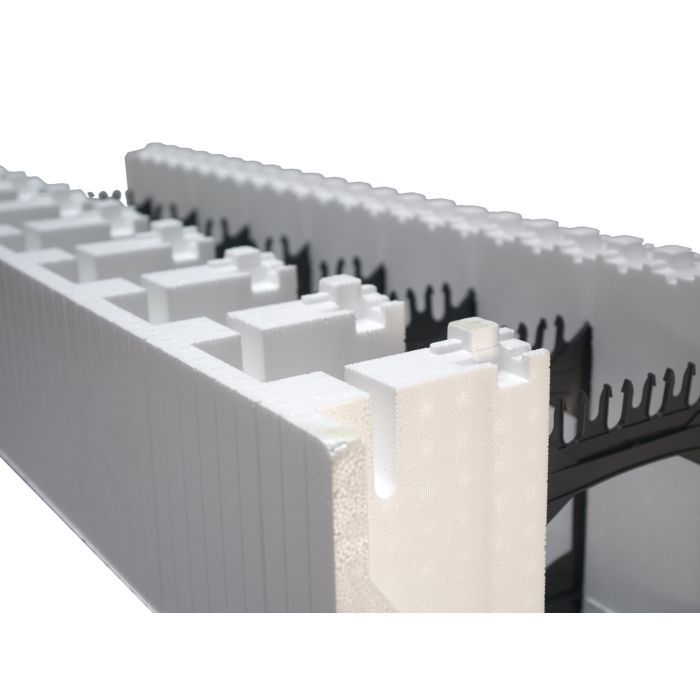

Amvic™ ICF R22 6" Brickledge

A 6″ core insulated concrete form block with an integrated brick ledge used in ICF wall systems to support exterior masonry veneer such as brick, stone, or other heavy cladding. It’s part of Alleguards ICF system and installs like regular ICF blocks with FormLock™ interlocks, providing a ledge/form for bearing brick veneer loads.

Did you know? Amvic™ ICF generates as little as 1% construction waste, greatly reducing landfill bound waste. Amvic™ ICF is manufactured using 100% post-industrial recycled polypropylene which effectively means that over 60% of the weight of an Amvic™ ICF block is comprised of recycled materials.

• Web Spacing: 6" on center
• Core Size: 6"
• Fully reversible Formlock™ interlocking system with a 1" depth which provides superior connection strength
• No need to glue, tape, tie or hook the blocks together
• Webs have built-in rebar clips which can hold 2 layers of reinforcing steel
• Designed to withstand internal vibration
• 60% of the weight of an Amvic™ ICF block is comprised of recycled materials
• Can be used below and above grade walls, frost walls, additions to existing buildings, multi-story construction, and demising walls in high-rise construction
