Amvic™ ICF R22 6" 90 Degree Corner Block

Amvic 6" 90 Degree Corner 8 sq ft

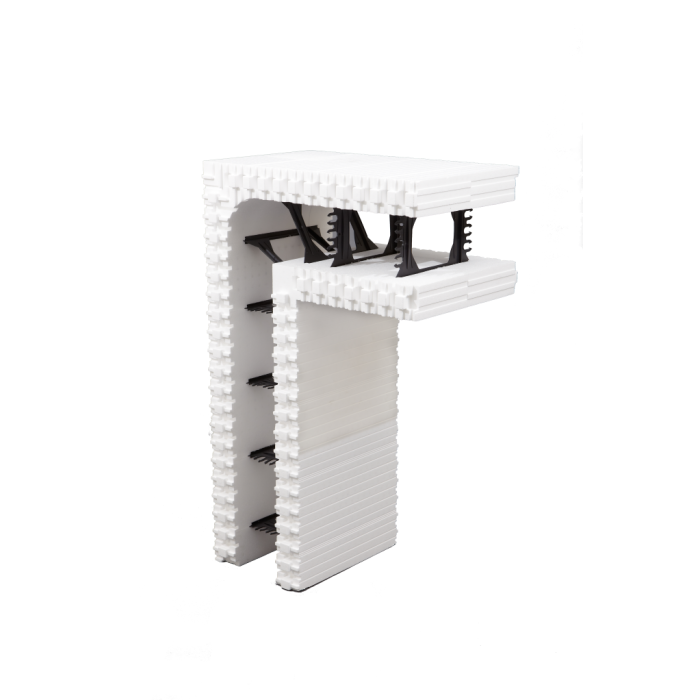

The Amvic 6″ 90° ICF Corner Block is a factory-assembled insulated concrete forming unit designed to create strong, thermally efficient corners in ICF wall systems. Made from expanded polystyrene (EPS) panels and reinforced with integral plastic webs, this corner form integrates seamlessly with straight ICF blocks to provide structural insulation and support for concrete placement. These blocks help form the corner intersections of insulated concrete form (ICF) walls while maintaining high insulation values and ease of assembly.

Did you know? Amvic™ ICF generates as little as 1% construction waste, greatly reducing landfill bound waste. Amvic™ ICF is manufactured using 100% post-industrial recycled polypropylene which effectively means that over 60% of the weight of an Amvic™ ICF block is comprised of recycled materials.

• Web Spacing: 6" on center
• Core Size: 6"
• Fully reversible Formlock™ interlocking system with a 1" depth which provides superior connection strength
• No need to glue, tape, tie or hook the blocks together
• Webs have built-in rebar clips which can hold 2 layers of reinforcing steel
• Designed to withstand internal vibration
• 60% of the weight of an Amvic™ ICF block is comprised of recycled materials
• Can be used below and above grade walls, frost walls, additions to existing buildings, multi-story construction, and demising walls in high-rise construction
