Amvic™ ICF R22 6" 45 Degree Corner Block

Amvic 6" 45 Degree Reversible Corner Block 3.38 sq ft

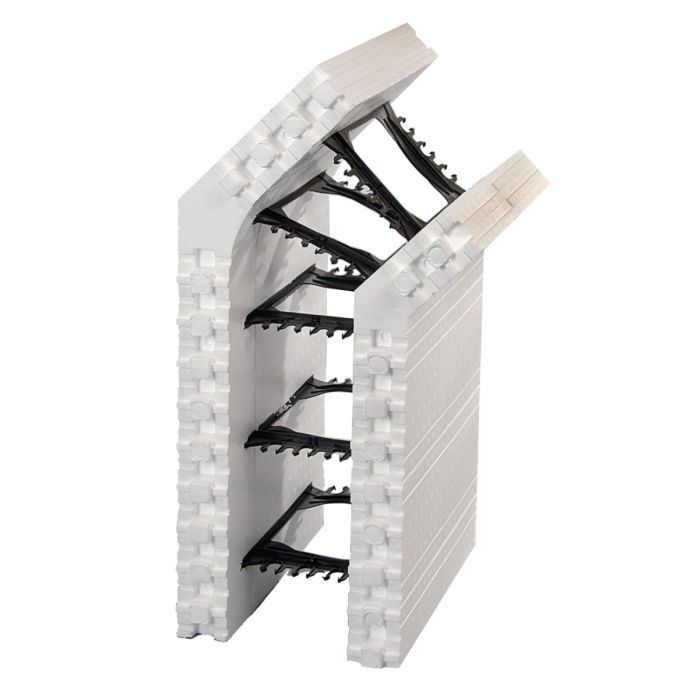

The Amvic™ 6″ 45° Corner Block is an insulated concrete form (ICF) corner unit engineered for creating 45° angled corners in concrete wall systems. Constructed from expanded polystyrene (EPS) with integral plastic webs, this panel provides continuous insulation while forming a strong, energy-efficient structure when concrete is poured. It easily locks into Amvic™ straight blocks and ensures proper alignment and thermal performance at non-standard corner angles. Ideal for foundation walls, basements, and other cast-in-place concrete applications.

Did you know? Amvic™ ICF generates as little as 1% construction waste, greatly reducing landfill bound waste. Amvic™ ICF is manufactured using 100% post-industrial recycled polypropylene which effectively means that over 60% of the weight of an Amvic™ ICF block is comprised of recycled materials.

• Web Spacing: 6" on center
• Core Size: 6"
• Fully reversible Formlock™ interlocking system with a 1" depth which provides superior connection strength
• No need to glue, tape, tie or hook the blocks together
• Webs have built-in rebar clips which can hold 2 layers of reinforcing steel
• Designed to withstand internal vibration
• 60% of the weight of an Amvic™ ICF block is comprised of recycled materials
• Can be used below and above grade walls, frost walls, additions to existing buildings, multi-story construction, and demising walls in high-rise construction
